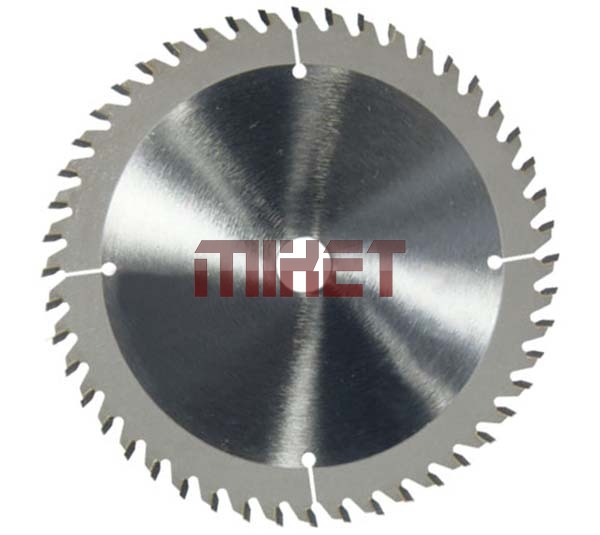

                    | TCT Saw Blade for plywood |  |  |
        |


              | Application:
Universal saw blade to rip and cross cut plywood,chipboard,solid wood,counter-veneer,laminated board,plastics with good finish;Applicable machine: Hand - held electric motor operated tools, table saws;Saw Blade with safety, great efficiency, precision  professional level and industrial level for your choice according to EN 847-1 standard. Features:
Unique quality controlling system,every procedure 100% inspected;ATB teeth, suitable for cross cutting and cutting along the grain of the wood .Plywood board,insulating board with soft grain.


| Outer Diameter | Bore | Thickness | Z |
| mm | Inch | (mm) | (mm) |
| 105 | 4" | 20 | 1.2 | 12,18,20,24,30,40 |
| 115 | 4.5" | 20 | 1.2 | 12,18,20,24,30,40 |
| 125 | 5" | 20 | 1.2 | 12,18,20,24,30,40 |
| 150 | 6" | 25.4 | 1.2 | 12,18,20,24,30,40 |
| 180 | 7" | 25.4 | 1.5 | 12,18,20,24,30,40 |
| 205 | 8" | 25.4 | 1.5 | 24,30,40,60 |
| 235 | 9" | 25.4/30 | 1.8 | 30,40,60,80 |
| 255 | 10" | 25.4/30 | 2 | 40,60,80,100,120 |
| 305 | 12" | 25.4/30 | 2.2 | 40,60,80,100,120 |
| 355 | 14" | 25.4/30 | 2.2 | 40,60,80,100,120 |
| 405 | 16" | 25.4/30 | 2.5 | 60,80,100,120 |
| 455 | 18" | 25.4/30 | 2.5/3.0 | 60,80,100,120 |
| 500 | 20" | 25.4/30 | 2.5/3.0 | 60,80,100,120 |
| 550 | 22" | 25.4/30 | 2.5/3.0 | 60,80,100,120 |  |  |  |  |
