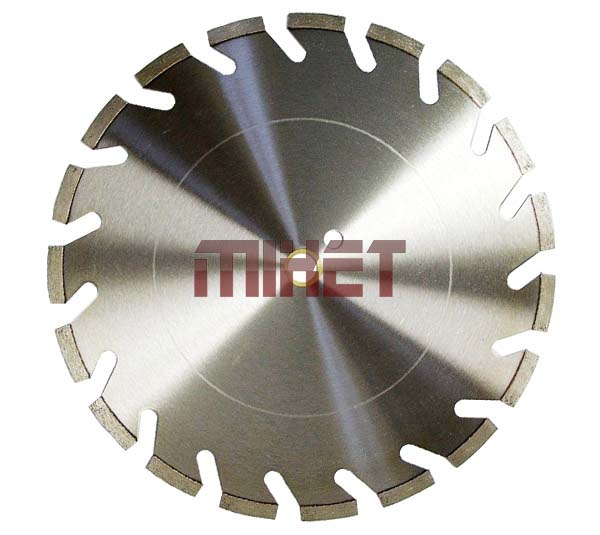

PREMIUM Grade U slot Diamond Blade
PREMIUM Grade

For cutting hard concrete, paver brick, hard brick, natural stone.

Laser welded ensures safety and durability.

High segments provide extended blade life.

Slant U-Slot design offers very fast cutting speed while keeping the steel core cool.

The arbor with pinhole fits most high speed saws, masonry saws.

Use Wet or Dry.

Item No.
Diameter
Bore
Segment Dimension / mm
Segment Count
Inch
(mm)
(mm)
Length
Height
Thickness
MT300USB
12"
300
50 / 25.4
40
10 / 15
2.8 /3.0 /3.2
21
MT350USB
14"
350
50 / 25.4
40
10 / 15
3.2 / 3.5 / 3.8
24
MT400USB
16"
400
50 / 25.4
40
10 / 15
3.5 / 3.8 / 4.0
28
MT450USB
18"
450
50 / 25.4
40
10 / 15
3.8 / 4.0 / 4.2
32 / 26
MT500USB
20"
500
50 / 25.4
40
10 / 15
4.0 / 4.2 / 4.5
30 / 36
MT600USB
24"
600
50 / 60
40
10 / 15
4.8 / 5.0 / 5.2
36 / 42
