Placing the mouse pointer on the image will launch the image amplifier and you can easily see the extra product detail

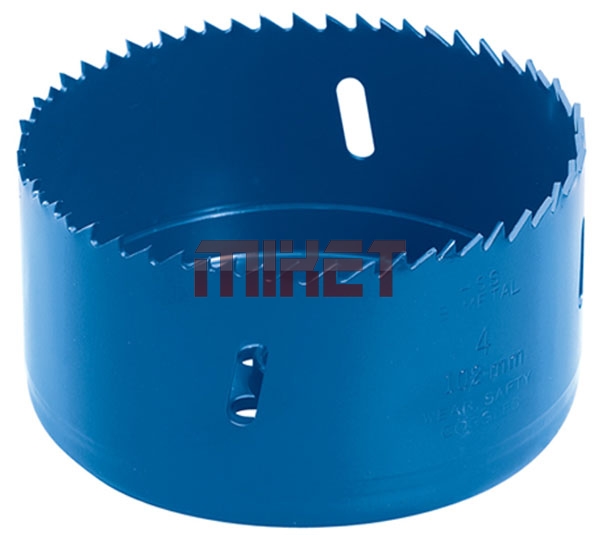

HSS Bi-Metal Hole Saw
1. M3 / M42 high speed bi-metal edge welded to alloy steel back for heavy duty cutting;

2.4/6 variable tooth;

3. Cutting safely and efficiently, the best way to cut large holes, clearing the chips in touch materials;

4. Cutting depth to 1-1/2¡± (38mm) and 1-7/8¡± (47mm);

5. Diameters from 9/16¡±  to 8-17/64" (14-210mm);

6. Can be used in portable electric or pneumatic tools, vertical drill machines, lathe, boring/milling machines and other machine tools;

7. Cuts through stainless steel and other materials pipe, nail-embedded wood, hard wood floors, plywood and plastics;

8.Fitting Arbor: 3/8¡± hex shank, 1/2-20 UNF thread fits for hole saw 9/16¡± ---- 3/16¡±(14-30mm); 7/16¡± hex shank, 5/8-18 UNF thread fits for hole saw 1-1/4¡± --- 8-17/64¡± (32-210mm).

Item No.
Diameter
¡¡
Item No.
Diameter
Metric(mm)
Inches
Metric(mm)
Inches
MT-01014
14
9/16"
MT-01060
60
2-3/8"
MT-01016
16
5/8"
MT-01064
64
2-1/2"
MT-01017
17
21/32"
MT-01065
65
2-9/16"
MT-01018
18
11/16"
MT-01067
67
2-5/8"
MT-01019
19
3/4"
MT-01068
68
2-11/16"
MT-01020
20
25/32"
MT-01070
70
2-3/4"
MT-01021
21
13/16"
MT-01073
73
2-7/8"
MT-01022
22
7/8"
MT-01076
76
3"
MT-01024
24
15/16"
MT-01079
79
3-1/8"
MT-01025
25
1"
MT-01083
83
3-1/4"
MT-01027
27
1-1/16"
MT-01086
86
3-3/8"
MT-01028
28
1-1/8"
MT-01089
89
3-1/2"
MT-01029
29
1-5/32"
MT-01092
92
3-5/8"
MT-01030
30
1-3/16"
MT-01095
95
3-3/4"
MT-01032
32
1-1/4"
MT-01098
98
3-7/8"
MT-01033
33
1-5/16"
MT-01102
102
4"
MT-01035
35
1-3/8"
MT-01105
105
4-1/8"
MT-01037
37
1-7/16"
MT-01108
108
4-1/4"
MT-01038
38
1-1/2"
MT-01111
111
4-3/8"
MT-01040
40
1-9/16"
MT-01114
114
4-1/2"
MT-01041
41
1-5/8"
MT-01121
121
4-3/4"
MT-01043
43
1-11/16"
MT-01127
127
5"
MT-01044
44
1-3/4"
MT-01133
133
5-1/4"
MT-01046
46
1-13/16"
MT-01140
140
5-1/2"
MT-01048
48
1-7/8"
MT-01146
146
5-3/4"
MT-01051
51
2"
MT-01152
152
6"
MT-01052
52
2-1/16"
MT-01165
165
6-1/2"
MT-01054
54
2-1/8"
MT-01178
178
7"
MT-01057
57
2-1/4"
MT-01200
200
7-7/8"
MT-01059
59
2-5/16"
MT-01210
210
8-17/64"
