Placing the mouse pointer on the image will launch the image amplifier and you can easily see the extra product detail

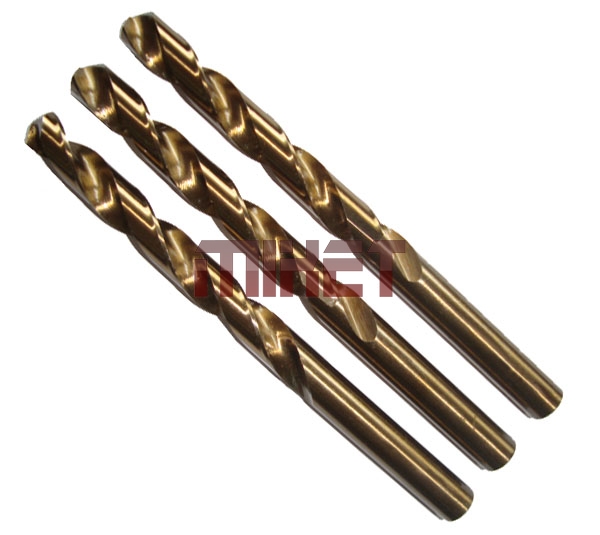

Fully Ground DIN338
Cobalt HSS Twist Drill Bits
Manufacturing Process: Fully Ground, HSS Co 5% or Co 8%.

Material: Cobalt High Speed Steel (HSS Co).

Sizes:1.0mm-20mm.

Surface Finishing: Coffee Color, White, Dark Coffee,etc.

Point Angle:118¡ãor 135¡ã (Split Point are available from 3mm).

Item No.:MTHSSCO

Diameter (mm)
Flute Length (mm)
Overall Lenghth (mm)
¡¡
Diameter (mm)
Flute Length (mm)
Overall Lenghth (mm)
1.0
12
34
11.0
94
142
1.5
18
40
11.5
94
142
2.0
24
49
12.0
101
151
2.5
30
57
12.5
101
151
3.0
33
61
13.0
101
151
3.5
39
70
13.5
108
160
4.0
43
75
14.0
108
160
4.5
47
80
14.5
114
169
5.0
52
86
15.0
114
169
5.5
57
93
15.5
120
178
6.0
57
93
16.0
120
178
6.5
63
101
16.5
125
184
7.0
69
109
17.0
125
184
7.5
69
109
17.5
130
191
8.0
75
117
18.0
130
191
8.5
75
117
18.5
135
198
9.0
81
125
19.0
135
198
9.5
81
125
19.5
140
205
10.0
87
133
20.0
140
205
10.5
87
133
¡¡
¡¡
¡¡

¡¾close¡¿
