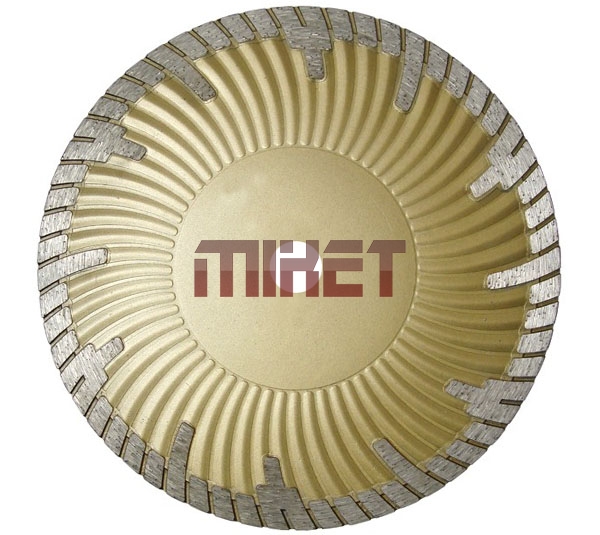

Undercut Protection Segment Wave Turbo Diamond Blade
This newly engineered continuous rim turbo blade with high grade synthetic diamond is used for extremely fast and smooth chip free cutting.

Specially designed wave-core can add core strength and wobble control. Such core can carry away debris easily.

Also the longer embedded segments add extra protection on the core.

Application: Intended for granite, marble and stone.

Item No.
Diameter
Bore
Segment Specification / mm
Inch
MM
(mm)
Thickness
Height
MTWUS105
4
105
20
2.0
10
MTWUS110
4.3
110
22.23
2.0
10
MTWUS115
4.5
115
22.23
2.2
10
MTWUS125
5
125
22.23
2.2
10
MTWUS150
6
150
22.23
2.4
10
MTWUS180
7
180
22.23
2.4
10
MTWUS200
8
200
22.23
2.4
10
MTWUS230
9
230
22.23
2.6
10
MTWUS250
10
250
25.4
2.8
10
MTWUS300
12
300
25.4
2.8
10
MTWUS350
14
350
25.4
3.0
10
