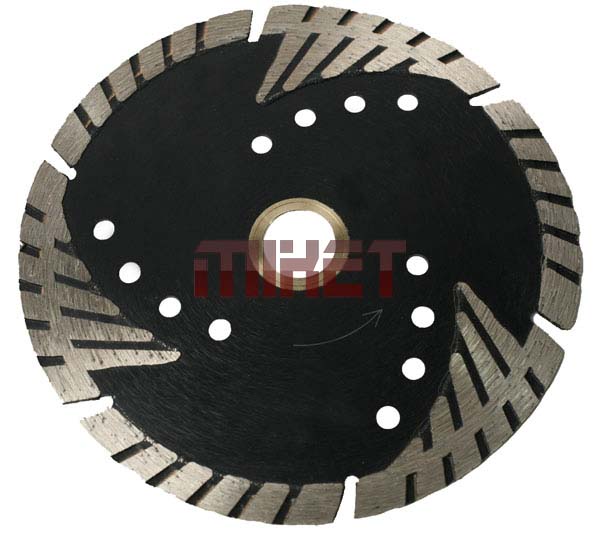

Deep Undercut Protection
Segmented Turbo Diamond Blade
This is an all-purpose sintered segmented turbo blade with specially designed deep protected segments.

With abrasive materials, it can provide undercut protection to users.

Special vented core can keep the blade cool during the operation.

Also it helps remove slurry to conduct the friction-free cutting.

APPLICATION: Intended for granite, marble, concrete, brick, block, stone, tile and masonry materials.

Item No.
Diameter
Segment Specification (mm)
Arbor
Inch
MM
Width
Height
MTUCT105
4"
105
2.2
10mm
7/8"-20mm-5/8"
MTUCT115
4-1/2"
115
2.2
10mm
7/8"-20mm-5/8"
MTUCT125
5"
125
2.2
10mm
7/8"-20mm-5/8"
MTUCT150
6"
150
2.2
10mm
7/8"-20mm-5/8"
MTUCT180
7"
180
2.6
10mm
DM-7/8"-5/8"
MTUCT200
8"
200
2.6
10mm
DM-7/8"-5/8"
MTUCT250
10"
250
2.8
10mm
DM-7/8"-5/8"
MTUCT300
12"
300
2.8
10mm
1"-20mm, 20mm
MTUCT350
14"
350
3.0
10mm
1"-20mm, 20mm
