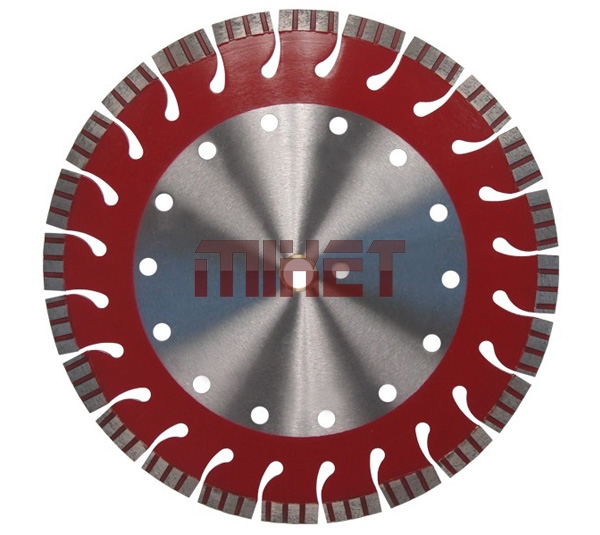

Laser Welded Turbo-Segmented
Diamond Blade with Jumbo Rim
This super multi-purpose TURBO SEGMENT blade has specially designed tear-drop slots combined with bigger cooling holes for fast removal of debris, greater heat dissipation and aggressive cutting for deep cuts. The 15mm jumbo rim gives the fabricator an opportunity to run longer and gain more life with this quality product. Drop segments provide under-cut protection for use with abrasive materials.

APPLICATION: Intended for Concrete, Cured Concrete, Reinforced Concrete, Roof Tile, Concrete Pipe, Hard Brick/Block, Pavers, Sandstone, Limestone, Asphalt overlay on Concrete and Masonry Materials.

Use WET or DRY.

For High Speed Saw and Up To 13HP Walk Behind Saw.

Item No.
Diameter
Segment Specification (mm)
Arbor
Inch
MM
Width
Height
MTJMR300
12"
300
3.2
15
1"-20mm
MTJMR350
14"
350
3.6
15
1"-20mm
MTJMR400
16"
400
3.6
15
1"-20mm
MTJMR450
18"
450
3.6
15
1"-20mm
MTJMR500
20"
500
4.2
15
1"-20mm
MTJMR600
24"
600
4.4
15
1"-20mm
