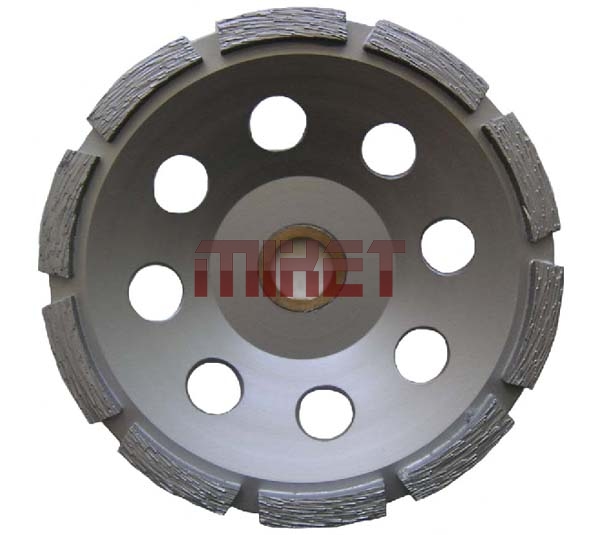

Single Row Diamond Grinding Wheel

This grinding wheel provides extended performance and tool life, used for aggressive material removal.

Large grinding segments with heat treated steel bodies help increase durability and wheel life.

This grinding cup wheel diamond coating is great for any kind of masonry grinding, marble, tile, concrete and rock.

Diamond Cup Wheels are designed to be used on small and large angle grinders. They are designed with an optimized cutting matrix. The high diamond concentration and quality provides a faster cut rate, longer blade life and high performance.

Application:

For Heavy Material Removal.
For grinding marble, tile, concrete and rock.

For Dry and Wet use, (Wet use recommended).

Also Threaded Arbor is available.

Item No.	Diameter		Bore (mm/inch)		Segment Specification		Segment No.
Item No.	MM	Inch	Bore (mm/inch)		Thickness(mm)	Height(mm)	Segment No.
MTCW105SS	105	4"	16/22.23	5/8"/7/8"	5	7	8
MTCW115SS	115	4.5"	16/22.23	5/8"/7/8"	5	8	9
MTCW125SS	125	5"	16/22.23	5/8"/7/8"	5	8	9
MTCW150SS	150	6"	16/22.23	5/8"/7/8"	5	8	10
MTCW180SS	180	7"	16/22.23	5/8"/7/8"	5	8	12
