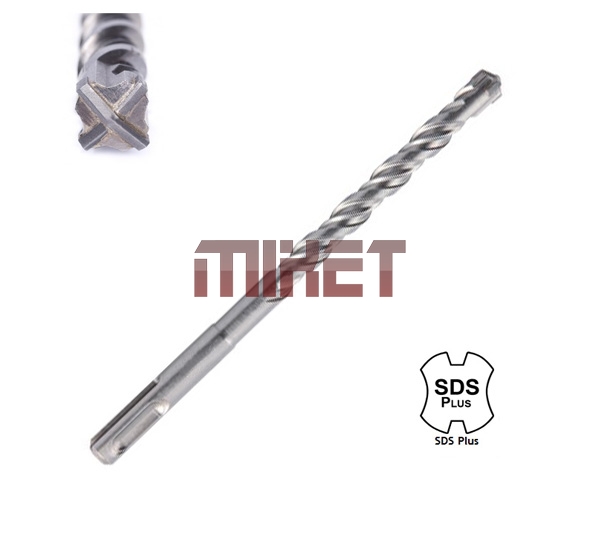

SDS Plus Cross Tip
Electric Hammer Drill Bits
Manufacturing Process: Atmosphere controlled hardening, tempering and brazing.

Materials: Good quality steel shanks and the Tungsten Carbide Tips.

Diameter :  Ø 3.0mm--- 35.0mm, Total Length: 85mm---1000mm.

Features:
* Tungsten carbide cutting tips for smoother; faster cut and prolonged life. 4 cutting edges penetrate hard masonry materials rapidly. Double fluted shank for efficient waste removal.

* Multi-carbide tip technology, combined with precision machining, delivers increased strength and extended life.

* Professional blasting and finishing reduces drill fatigue and increases the strength of the bit.

* Double flute geometry of the body gives maximum resistance to extreme torsion levels and maximizes speed and penetration rates.

Application: Ideal for Brick work / Concrete / Block work / other masonry, Also suitable for Wood / Plastic / Ceramic / Tiles / Light building materials.

Fits hammer drills with SDS-Plus chucking and 2-slot chucking system. It can be used with Electric Hammer of BOSCH Co., AEG. Co., BLACK & DECKER Co., HILTI Co., PHILLIPS Co., HITACHI Co., and MAKITA Co., The shank is round with dual-arc and dual-key way.

Item No.
Diameter (mm)
Overall Length (mm)
　
Item No.
Diameter (mm)
Overall Length (mm)
MT003085C
3
85
　
MT018310C
18
310
MT004110C
4
110
　
MT018350C
18
350
MT004160C
4
160
　
MT018400C
18
410
MT005110C
5
110
　
MT018460C
18
460
MT005160C
5
160
　
MT018600C
18
600
MT005210C
5
210
　
MT018800C
18
800
MT006110C
6
110
　
MT0181000C
18
1000
MT006160C
6
160
　
MT020210C
20
210
MT006210C
6
210
　
MT020260C
20
260
MT006260C
6
260
　
MT020310C
20
310
MT006310C
6
310
　
MT020350C
20
350
MT006350C
6
350
　
MT020410C
20
410
MT007110C
7
110
　
MT020460C
20
460
MT007160C
7
160
　
MT020600C
20
600
MT007210C
7
210
　
MT020800C
20
800
MT007260C
7
260
　
MT0201000C
20
1000
MT008110C
8
110
　
MT022210C
22
210
MT008160C
8
160
　
MT022260C
22
260
MT008210C
8
210
　
MT022310C
22
310
MT008260C
8
260
　
MT022350C
22
350
MT008310C
8
310
　
MT022410C
22
410
MT008350C
8
350
　
MT022460C
22
460
MT008410C
8
410
　
MT022600C
22
600
MT008460C
8
460
　
MT022800C
22
800
MT008600C
8
600
　
MT0221000C
22
1000
MT010110C
10
110
　
MT025210C
25
210
MT10160C
10
160
　
MT025260C
25
260
MT010210C
10
210
　
MT025310C
25
310
MT010260C
10
260
　
MT025350C
25
350
MT010310C
10
310
　
MT025410C
25
410
MT010350C
10
350
　
MT025460C
25
460
MT010410C
10
410
　
MT025600C
25
600
MT010460C
10
460
　
MT025800C
25
800
MT010600C
10
600
　
MT0251000C
25
1000
MT010800C
10
800
　
MT026210C
26
210
MT0101000C
10
1000
　
MT026260C
26
260
MT012110C
12
110
　
MT026310C
26
310
MT012160C
12
160
　
MT026350C
26
350
MT012210C
12
210
　
MT026410C
26
410
MT012260C
12
260
　
MT026600C
26
600
MT012310C
12
310
　
MT026800C
26
800
MT012350C
12
350
　
MT0261000C
26
1000
MT012410C
12
410
　
MT028210C
28
210
MT012600C
12
600
　
MT028260C
28
260
MT012800C
12
800
　
MT028310C
28
310
MT0121000C
12
1000
　
MT028350C
28
350
MT013460C
13
460
　
MT028410C
28
410
MT013600C
13
600
　
MT028600C
28
600
MT014160C
14
160
　
MT028800C
28
800
MT014210C
14
210
　
MT0281000C
28
1000
MT014260C
14
260
　
MT030310C
30
310
MT014310C
14
310
　
MT030350C
30
350
MT014350C
14
350
　
MT030410C
30
410
MT014410C
14
410
　
MT030460C
30
460
MT014460C
14
460
　
MT030600C
30
600
MT014600C
14
600
　
MT030800C
30
800
MT014800C
14
800
　
MT0301000C
30
1000
MT0141000C
14
1000
　
MT032310C
32
310
MT016160C
16
160
　
MT032350C
32
350
MT016210C
16
210
　
MT032410C
32
410
MT016260C
16
260
　
MT032460C
32
460
MT016310C
16
310
　
MT032600C
32
600
MT016350C
16
350
　
MT032800C
32
800
MT016410C
16
410
　
MT0321000C
32
1000
MT016460C
16
460
　
MT035310C
35
310
MT016600C
16
600
　
MT035350C
35
350
MT016800C
16
800
　
MT035410C
35
410
MT0161000C
16
1000
　
MT035460C
35
460
MT018210C
18
210
　
MT035600C
35
600
MT018260C
18
260
　
MT035800C
35
800
　
　
　
　
MT0351000C
35
1000
