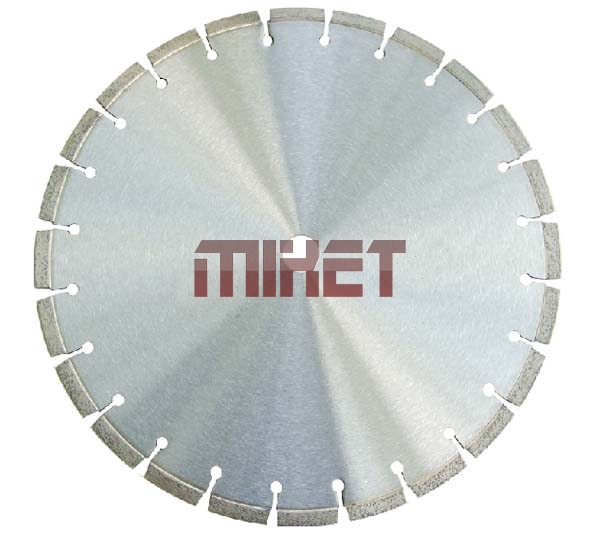

Laser Welded Concrete Cutting
Segmented Blades
Laser Welded Concrete Cutting Segmented Blades are used for cutting concrete, hard concrete, hard concrete with reinforced bars, block, brick, hard brick, pavers, clay pavers and field stones. These blades come laser welded, are intended to withstand hard use. Although a concrete blade provides better speed and longevity, they are designed for cutting a limited variety of materials.

Different Bonds are available as our customers¡¯ requests.

Features:
* This professional heavy duty cured concrete blade provides maximum performance, outstanding cutting speed and long life on any kind of cured concrete.
* Using laser to weld segments onto the blade that insures the strength of welding.
* Fast and Free Cutting.

Application: Cured Concrete, Concrete Roadways, Reinforced Concrete and Hard Concrete Aggregate and some other hard masonry materials.

Machinery: For Up to 65HP Walk Behind Saw, Flat Saw.  Use WET only.

Item No.
Diameter
Bore
Segment Dimension (mm)
Segment Number
Inch
mm
(mm)
Length
Height
MT300LCB
12"
300
50 / 60 / 25.4
40
10 / 12 / 15
21
MT350LCB
14"
350
50 / 60 / 25.4
40
10 / 12 / 15
24
MT400LCB
16"
400
50 / 60 / 25.4
40
10 / 12 / 15
28
MT450LCB
18"
450
50 / 60 / 25.4
40
10 / 12 / 15
32 / 26
MT500LCB
20"
500
50 / 60 / 25.4
40
10 / 12 / 15
30 / 36
MT600LCB
24"
600
50 / 60
40
10 / 12 / 15
36 / 42
MT700LCB
28"
700
50 / 60
40
10 / 12 / 15
40 / 50
MT800LCB
32"
800
50 / 60
40
10 / 12 / 15
46 / 56
MT900LCB
35"
900
50 / 60 / 80
24
10 / 12 / 15
64
MT1000LCB
39"
1000
50 / 60 / 80
24
10 / 12 / 15
70
MT1200LCB
47"
1200
80 / 100 / 120
24
10 / 12 / 15
80
MT1300LCB
51"
1300
80 / 100 / 120
24
10 / 12 / 15
88
MT1400LCB
55"
1400
80 / 100 / 120
24
10 / 12 / 15
92
MT1500LCB
59"
1500
80 / 100 / 120
24
10 / 12 / 15
100
MT1600LCB
63"
1600
80 / 100 / 120
24
10 / 12 / 15
104
MT1800LCB
71"
1800
100 / 150
24
10 / 12 / 15
120
MT2000LCB
79"
2000
100 / 150
24
10 / 12 / 15
128
MT2200LCB
87"
2200
100 / 150
24
10 / 12 / 15
132
MT2500LCB
98"
2500
100 / 150
24
10 / 12 / 15
140
MT2600LCB
102"
2600
100 / 150
24
10 / 12 / 15
140
MT2800LCB
110"
2800
100 / 150
24
10 / 12 / 15
148
MT3000LCB
118"
3000
100 / 150
24
10 / 12 / 15
156
