Placing the mouse pointer on the image will launch the image amplifier and you can easily see the extra product detail

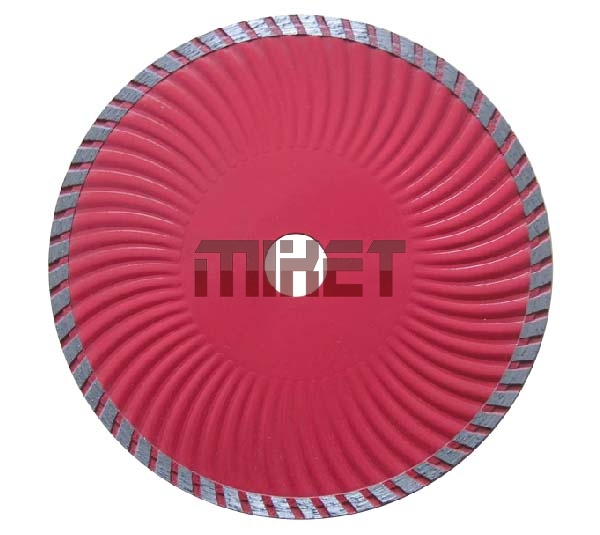

Wave Diamond Saw Blade
Features: The wave shaped diamond saw blade core improves blade rigidity, reduces friction and avoids wobbing during cutting.

Application: Hard concrete, hard brick, granite, masonry.

Machinery: Angle grinder, circular saw, masonry saw.

Different specifications are available according to your request.

Item No.
Diameter
Bore Size
Segment Thickness
Segment Height
mm
Inch
(mm/inch)
(mm)
(mm)
MT105TW
105
4"
20.00/ 0.787"
2.4
8
MT115TW
115
4-1/2"
22.23/ 0.875"
2.6
8
MT125TW
125
5"
22.23/ 0.875"
2.6
8
MT150TW
150
6"
22.23/ 0.875"
2.6
8
MT180TW
180
7"
22.23/ 0.875"
2.8
8
MT200TW
200
8"
22.23/ 0.875"
2.8
8
MT230TW
230
9"
22.23/ 0.875"
2.8
8
