Placing the mouse pointer on the image will launch the image amplifier and you can easily see the extra product detail

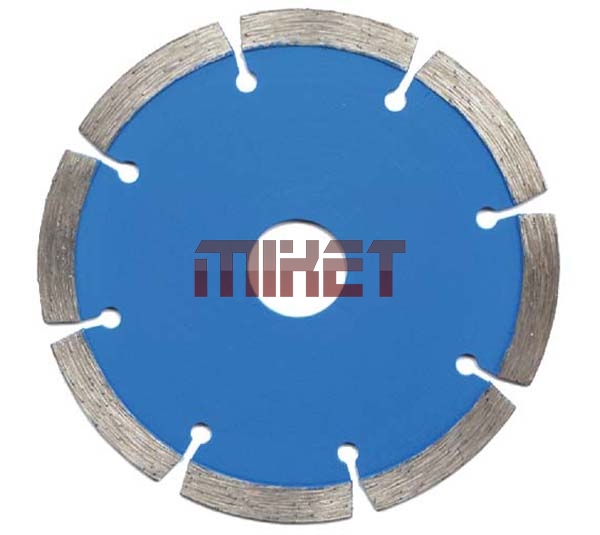

Segmented Diamond Saw Blade
Features: Multi-application diamond saw blades are suitable for fast, free, smooth cutting.

Application: Tile, bricks, brick blocks, concrete, marble, soft granite, stone and many other materials.

Machinery: Angle grinder, circular saw, masonry saw, table saw.

Different specifications are available according to your request.

Item No.
Diameter
Bore Size
Segment Thickness
Segment Height
mm
Inch
(mm/Inch)
(mm)
(mm)
MT105SG
105
4"
20/ 0.787"
1.8
8
MT110SG
110
4-1/4"
20/ 0.787"
1.8
8
MT115SG
115
4-1/2"
22.23/ 0.875"
2.0
8
MT125SG
125
5"
22.23/ 0.875"
2.0
8
MT150SG
150
6"
22.23/ 0.875"
2.2
8
MT180SG
180
7"
22.23/ 0.875"
2.4
8
MT200SG
200
8"
22.23/ 0.875"
2.4
8
MT230SG
230
9"
22.23/ 0.875"
2.6
8
MT250SG
250
10"
22.23/ 0.875"
2.8
8
MT300SG
300
12"
25.4/ 1"
3.0
8
MT350SG
350
14"
25.4/ 1"
3.2
8
¡¾close¡¿
